F156 terminal lead mold (180–200g) + 100 free loops
Code: YM/0156Related products
Product detailed description

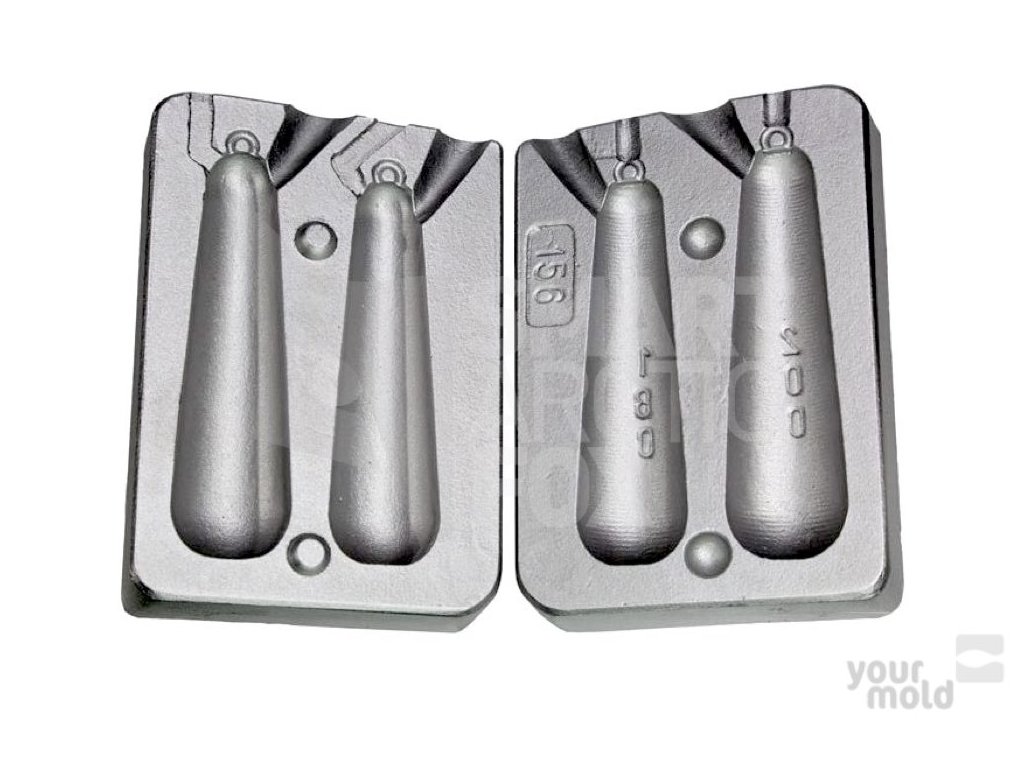

The Your Mold F156 aluminum mold produces terminal leads with a cast-in loop. Its 2 separate cavities provide nominal weights of 180 / 200 g. You can fill an individual cavity without filling all the others.
F156 casts terminal leads with an attachment loop. Select the load to suit current, bottom conditions, rig control and the capacity of your rod and complete tackle. Shape and weight alone do not guarantee a casting distance or suitability for a fixed depth. Compare F157 and F10 for other weights or constructions.
Seat a Your Mold size 1 loop in the intended groove before casting. The embedded section stays anchored in the lead, leaving the eye accessible for attaching the rig. Check orientation and full mold closure without force. The same size number on another product does not by itself establish compatibility.
This offer includes 100 free SAF size 1 universal stainless steel loops. They are a different product from the original Your Mold loop; check the selected part’s fit before casting. No further discounts or other promotional benefits apply to this product.
Additional inserts and finishing accessories are selected separately for the specific construction. Check correct assembly and secure closure of all mold parts before filling.
Weight and insert overview
| Nominal casting weight | Cavities | Insert during casting | Finishing |
|---|---|---|---|
| 180 g | 1 | Your Mold size 1 loop | Loop remains in the casting |
| 200 g | 1 | Your Mold size 1 loop | Loop remains in the casting |
From the F156 mold to a finished lead
- Prepare a clean, completely dry mold, inserts and tools. Choose the required cavity.
- Seat the specified insert (Your Mold size 1 loop) and check full, secure closure without force.
- Cast according to the instructions for the mold, metal and melting equipment. Keep plastic and rubber parts away from molten metal.
- After solidification, remove the casting safely. Check the anchorage and accessibility of the loop.
- Trim the sprue and deburr sharp edges. Check the strength of the cast-in attachment.
- Weigh and inspect the first casting, then test the complete rig before continuing with a larger batch.
Nominal weights refer to one casting, not the total output of the mold. The metal used and finishing affect actual weight, so weigh the first casting from each cavity you use. Keep within the casting capacity of your rod and complete tackle.
The complete rig determines how the lead is attached and whether it can release. Test all components in the combination you intend to use. Finish the cleaned lead with a rubber lead coating according to its instructions, keeping the eye or passage functional.
Casting safety
- Never pour molten metal into a damp mold. Inserts and tools must also be completely dry.
- Wear safety glasses and suitable gloves; use a stable, heat-resistant work area with effective ventilation.
- Follow the instructions for the mold, metal and melting equipment. A mold temperature limit is not a recommended pouring temperature.
- Do not eat, drink or smoke while working with lead. Keep casting equipment separate from kitchen utensils and wash your hands afterwards.
Frequently asked questions (FAQ)
How many leads does one mold produce?
2 separate castings at nominal weights of 180 / 200 g if all cavities are filled. You can use individual cavities.
Which insert is required?
Use the specified Your Mold size 1 loop. The loop stays in the casting.
Are accessories included?
The offer includes 100 free SAF size 1 universal stainless steel loops. Additional original loops and coatings are sold separately.
When should I choose another mold?
Compare F157 and F10 for different weights or constructions. Check each mold’s own insert requirements.
→ For all detailed technical information, see the Parameters section below.
↓ Below the product description you will also find related and similar products to help you choose and build a complete setup.
Additional parameters
| Category: | Pilker & Saltwater Weight Molds |
|---|---|
| Weight: | 0.602 kg |
| Designation: | F156 |
| Material: | aluminum |
| Number of castings: | 2 |
| Compatible loop: | #1 |
| Compatible coating: | rubber coating |
| Warranty: | 2 years |
| Casting Weight Range – All Molds: | Over 120 up to 200 g |
| Saltwater Casting Weight Range: | Over 120 to 200 g |
| Freshwater Casting Weight Range: | Over 150 to 200 g |
| Saltwater Mold Type: | Terminal Sinker |
| Cast Type: | Sinker |
| Freshwater Casting Type: | Special Casting |
